Instrument Introduction
S10 Lock Cylinder Inspection Video Borescope Industrial Borescope is used in the lock cylinder and NDT (non-destructive testing) work. Now it has been welcomed by police inspection, industrial manufacturing, and maintenance industries.

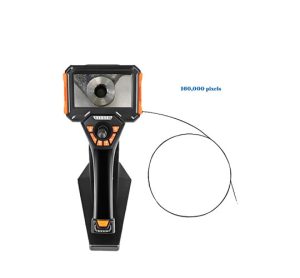

SEESEM S10 endoscope is a cost-effective ultra-thin endoscope specially used for police lock cylinders and microscopic space inspection. It has the characteristics of an ultra-thin pipeline, a clear image, and high color reproduction.
Features
1. Diameter: 1mm, hose line length: 1-3 meters
2. Screen size: 4.3 inches WVGA (800×480) daylight screen
3. Image: It adopts a 160,000-pixel ultra-clear camera, which can clearly and accurately reflect the measured object’s static image and dynamic video. It can collect image information and save it to the memory card.
4. Lighting mode: front LED lighting, brightness level 9 adjustable.
5. Shooting and recording functions: the device has a camera and video storage function, and the captured image files can be stored as JPEG/BMP files, and the video format is MP4 files, which can restore the details of the scene more realistically; it is equipped with play, pause, Fast forward and rewind functions.
6. Output port: Mini HDMI high-definition multimedia video output port, which can transmit uncompressed high-definition video with high quality, providing users with a more incredible visual experience.
7. Lightweight and portable: The machine weighs only 0.45kg, and the integrated handheld design makes it easy to carry.
8. Guidance system: no guidance, no delay in operation.
9. Image preview: Look back at the list; you can watch and delete it in full screen in preview mode.
*Need to turn to customize according to needs
Product parameters
| Host machine | |
| Host size | 295mm*136mm*60mm |
| System weight | ≤0.45kg(Including battery weight) |
| Chassis size | 415mm*340mm*144mm |
| Replaceable insertion tube | The spare insertion tube can be replaced by yourself. |
| Mainframe base | Super magnetic solid adsorption base (optional) |
| Protective | Probes, objective lenses, and pipelines can withstand IP67 oil-proof, waterproof, and anti-corrosion |
| Drop level | 1 meter |
| Power supply | |
| Power | Rechargeable lithium battery (replaceable) |
| Battery capacity | 4.2V， 5000mAh |
| Host working hours | ≥6 hours |
| Charging parameters | DC5V, maximum current 2A |
| Operating environment | |
| Operating temperature of the host system | -10C~50C |
| Operating temperature of the host system | -20°C~60C |
| Video probe working temperature | -20°C~60°C |
| Relative humidity | 15 to 90%, non-condensing |
Standard configuration:
High-end instrument case, endoscope host, one rechargeable lithium battery, card reader, 32G TF memory card, charging plug, data cable, instruction manual, certificate of conformity, warranty card, HDMI cable, magnetic solid Adsorption base.
