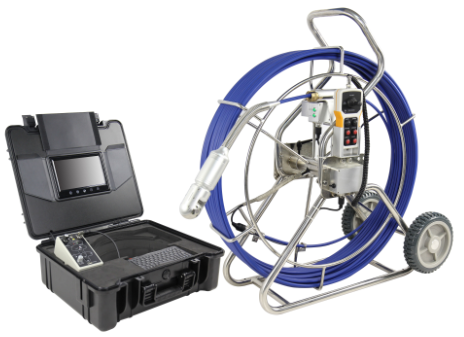

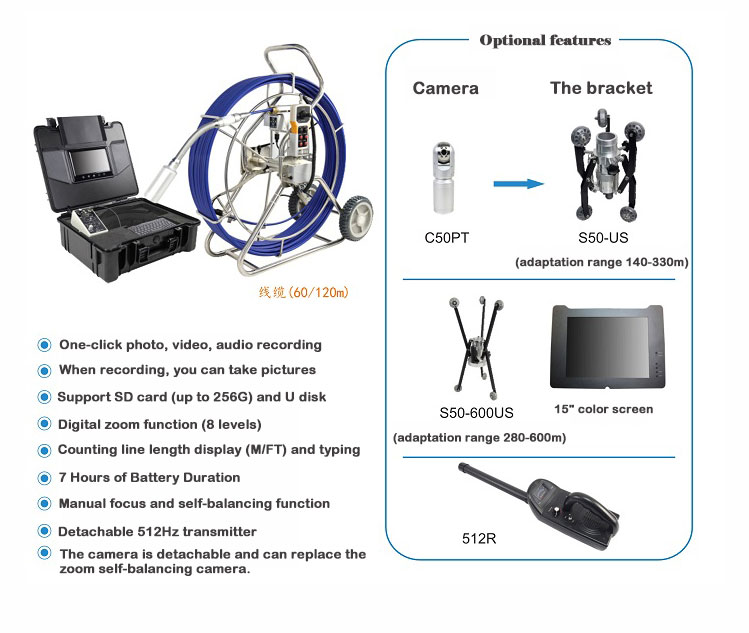

60m/120m pipeline endoscope real shot
The main parameters of the 60m/120m pipeline endoscope are as follows:
| Camera | |
| Camera size: | φ50mmX118mm |
| Sensor size: | 1/3 SONY CCD |
| Angle of view: | 90° |
| Working Current/Voltage | 250MA/DC12V |
| Camera lights: | 6 bright LED lights |
| manual focus | |
| Resolution: | 960TV Line |
| Lens material: | Sapphire glass |
| Shell material | Aluminum alloy |
| Self-balancing function | |
| Coil | |
| Coil size: | φ768LX369WX820Hmm |
| Cable material: | fiberglass thread |
| Cable length: | 60m(Standard) |
| Cable Diameter: | p9.5mm |
| Counting function and braking function | |
| Lithium batteries | |
| Total power: | 14W |
| Charging time | 5 hours |
| Protection Voltage | 9.3v |
| Working hours | ≥420 minutes |
| Protective bracket | |
| Bracket 1/2/3: | φ110/φ150/φ220mm |
| Carrying case | |
| Size | L511*W430*H200mm |
| Material | ABS waterproof shell
|
| Control Panel | |
| Operating Voltage | 12V |
| Working current | 200MA |
| Storage medium | 8G SD card (maximum support 256G) U disk |
| 10-level digital amplification | |
| Photo shooting and video recording | |
| DVR total pixels | 720*576（D1） |
| Video format: | MP4 |
| Metric and Imperial Conversion | |
| Reset function | |
| Control handle | |
| 50PT rotary control: | Horizontal-Left/Right, Vertical-Up/Down, Auto, Speed |
| 50BF focusing | Focus+/Focus- |
| Light adjustment: | Brighten and dim |
| Adapt model | A4/B4 |
| Protective bracket | |
| Bracket 1/2/3: | φ110/φ150/φ220mm |
