S40 explosion-proof ultra-high-definition industrial videoscope

Product support: OEM, ODM

Product certification: CE certification, pipeline IP68 certification, host IP54 certification, high and low-temperature certification

Enterprise Qualification: Has obtained enterprise ISO9001, ISO45001, ISO14001 product quality system certification

Features

Inner cavity inspection: check parts and raw materials for internal cavity surface cracks, peeling, wire drawing, scratches, pits, protrusions, spots, corrosion, and other defects;
Assembly inspection: check whether each component meets the drawing requirements and whether there are assembly defects;
Weld inspection: check surface defects such as weld surface cracks, oxidation color, incomplete penetration, and weld leakage;
Residue inspection: check various metal and non-metal residues, cleaning residues, residual chips, foreign objects, etc., in the inner cavity of the component;
Processing detection: detection of defects such as burrs, damage, flagging, and so on produced in various mechanical processing processes;

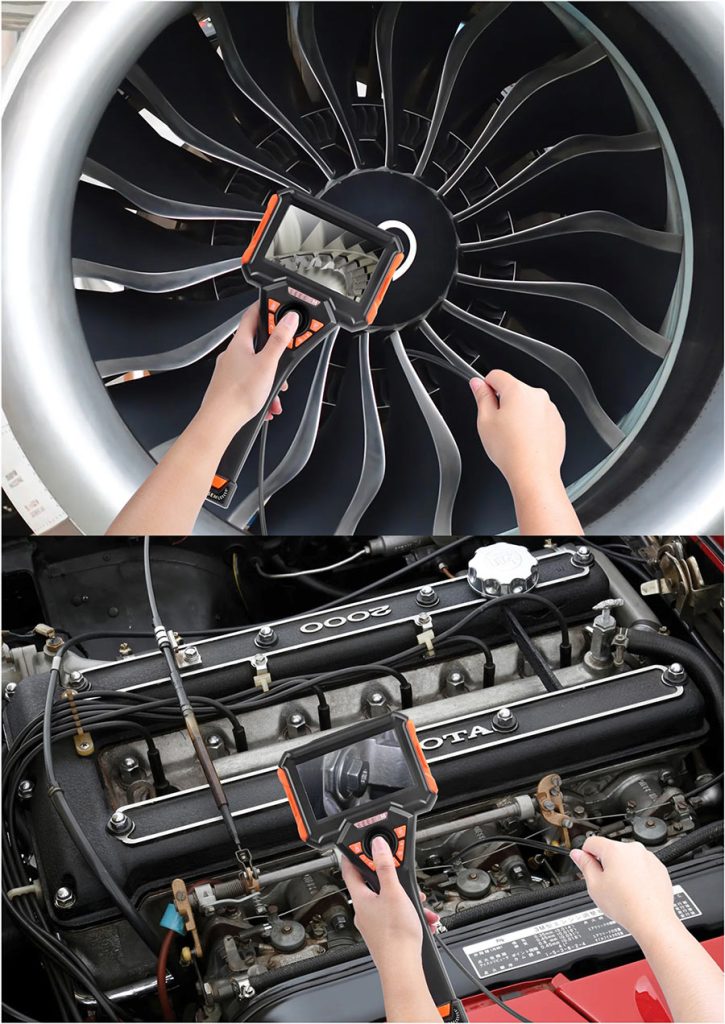

Status inspection: detect the operating status of in-service equipment, the quality of the inner surface, etc.

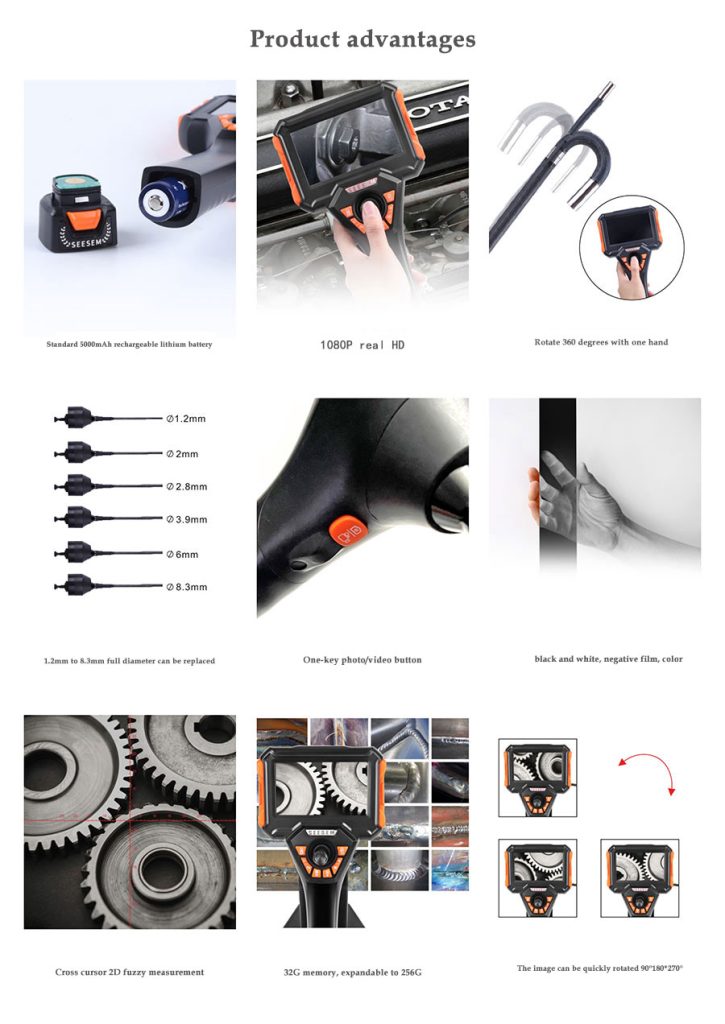

1. Ingenious design, in line with ergonomics, the pipeline can be replaced quickly, and the image quality is clear and stable;

2. The software can be updated, customized, and wifi module and audio can be added;

3. The price is moderate, and the pipeline can be changed at will on the same machine, providing customers with different options;

4. 4.3-inch daylight screen, 5000mAh ample power, 32G storage, increase without price increase;

5. More user-friendly customized system, which can be displayed on a large external screen;

6. Probe temperature display: the real-time display of probe temperature and over-temperature warning and alarm;

7. The length is optional, from 0.5 to 12 meters, and longer distances must be customized.

*The pipeline waterproof level has been upgraded to IP68

In addition, S40 industrial video scopes support customized rigid tube video scopes; welcome to consult seesem@126.com!!!

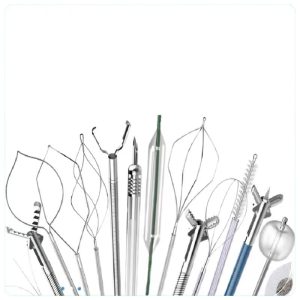

The latest accessories for grabbing industrial endoscopes:

Host System
Screen Size	4.3-inch WVGA
Display Resolution	800*480 sunlight-readable screen
Image Zoom	Supports real-time 5x zoom and can zoom in up to 9x when viewing photos
LED brightness level	Front LED≥18000x, rear 20000lx-100000lx
Auxiliary measurement	function Crosshair ruler
Shooting and recording functions	With camera and video recording functions
File format	The image storage format is BMP/JPEG, and the video storage format is MP4
Image rotation	0°/90°/180/270°
Image preview	playback usage list
Host weight	0.4≤Kg (including battery)

Piping systems
Lighting method		Front LED lighting or rear LED fiber light guide, manual 9-level adjustment
Probe guidance capability		360° continuous guidance in all directions
The one-way bending angle of the probe		Within 5 rice≥ 160°±10°, 5 rice or more≥120°±10°
Pipeline material		Within 5 rice≥ 160°±10°, 5 rice or more≥120°±10°
Probe material		Titanium alloy
Guided control mode		Mechanical control
Power supply method		1 x 21700 rechargeable lithium battery
Host working hours		1 x 21700 rechargeable lithium battery

Configuration
Standard configuration	Instrument box, main engine, pipeline, operation manual, warranty card, certificate of conformity, Shipping list, 32GTF card, lanyard, charger, 1m charging cable, Card reader, dust-free cloth, cable tie, 1 section of 5000mAh 21700 rechargeable Lithium battery, base
Options	Magnetic base, telescoping pole, foreign body clamp

Fill out the short form, and we will contact you shortly.

Tell us when the product will be delivered.

We can provide an electronic version manual of the product.
