Instrument Introduction
S80 hard rod industrial endoscope can be equipped with a large-screen display, 1mm-8.3mm diameter optional can be used in precision castings, pipeline welds, auto parts casting, and other industries.

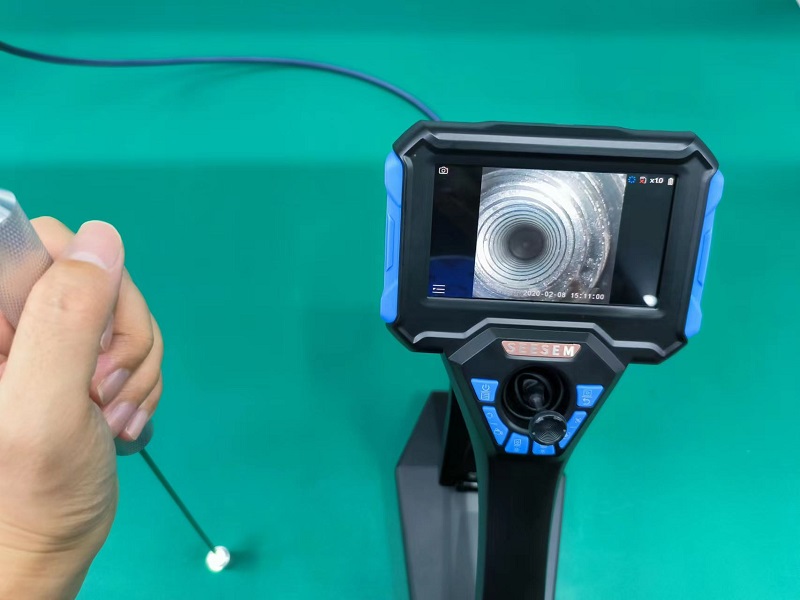

Equipped with a large-screen display to detect real pictures
Product Features
1. Pipeline: 1mm-8.3mm.
2. Image: A 16-2 million pixel ultra-clear camera is used. It can clearly and accurately reflect the measured object’s static image and dynamic video, collect image information and save it to the memory card.
2. Lighting mode: front LED lighting or rear LED fiber optic light guide lighting (limited to >2mm tube diameter) is optional, the brightness level can be adjusted in 9 groups, and the maximum illuminance of rear LED fiber optic light guide can reach 100000lx.
3. Shooting and recording functions: the device has a camera and video storage function. The user can capture the current image when recording without switching to the camera mode to cause video interruption and improve detection efficiency. The captured image files can be stored as JPEG/BMP files, and the video format is MP4 files, which can restore the details of the scene more realistically; it is equipped with play, pause, fast forward, and fast rewind functions during video playback.
4. Output port: Mini HDMI high-definition multimedia video output port, which can transmit uncompressed high-definition video with high quality, providing users with a more incredible visual experience.
5. Image preview: look back at the adopted list; preview mode lets you watch and delete in full screen.
Technical parameters
| Picture video format | Pictures are stored as JPEG/BMP; videos are stored as MP4 |
| Image flip | 0°, 90°, 180°, 270° flip |
| Look back display | The review adopts the list preview method, in the preview mode, full-screen viewing/deletion/ |
| Image zoom function | Real-time 4x zoom and 8x partial zoom when viewing pictures |
| menu language selection | Chinese, English, Russian, and eight other languages are optional. |
| Storage device | Standard 32G capacity TF card |
| Data interface | Mini H DIM port |
| Host machine | |
| Host size | 295mm*136mm*60mm |
| System weight | ≤0.45kg(Including battery weight) |
| Chassis size | 415mm*340mm*144mm |
| Replaceable insertion tube | The spare insertion tube can be replaced by yourself. |
| Mainframe base | Super magnetic solid adsorption base (optional) |
| Protective | Probes, objective lenses, and pipelines can withstand IP67 oil-proof, waterproof, and anti-corrosion |
| Drop level | 1 meter |
| Power supply | |
| Power | Rechargeable lithium battery (replaceable) |
| Battery capacity | 4.2V， 5000mAh |
| Host working hours | ≥6 hours |
| Charging parameters | DC5V, maximum current 2A |
| Operating environment | |
| Operating temperature of host system | -10C~50C |
| Operating temperature of host system | -20°C~60C |
| Video probe working temperature | -20°C~60°C |
| Relative humidity | 15 to 90%, non-condensing |
Standard configuration:
High-end instrument case, HDMI cable, endoscope host, one rechargeable lithium battery, card reader, 32G TF memory card, charging plug, charging cable, instruction manual, certificate of conformity, and warranty card
Optional:
Optional configuration: strong magnetic adsorption base, 5V2A charging base.
